Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers

Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers
Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers

বড় ইমেজ :  Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: YING-LIFT
সাক্ষ্যদান: ISO,CE
Model Number: YL300
প্রদান:
Minimum Order Quantity: 1 set
মূল্য: Negotiation
Packaging Details: Strong export package with stretched film and then put onto pallet
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: unlimited
বিস্তারিত পণ্যের বর্ণনা
Pump: High quality hydraulic pump stationp Capacity: 300KG
Suitable: 55-gallon steel drums & 210L plastic drums Height: Can reach to 2090mm pouring height
Type: Electric lift and electric rotation Construction: All steel construction
লক্ষণীয় করা:

drum handling equipment

,

drum moving equipment

All steel construction Drum Karriers , Drum Movers With High quality hydraulic pump station



Quick detail :

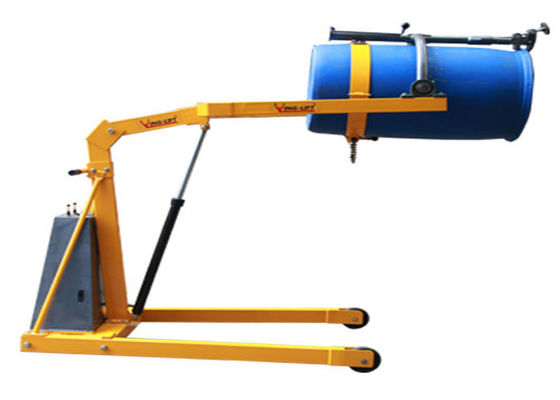

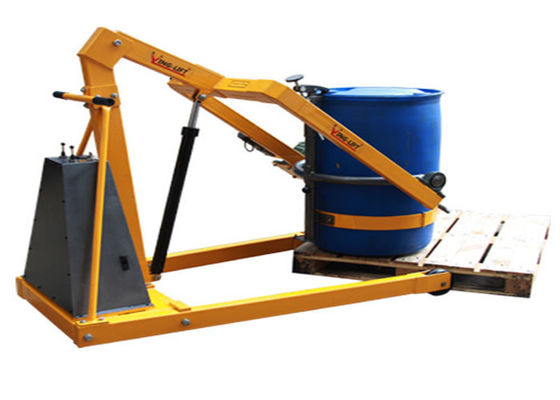

1. YING-LIFT Semi-electric Drum Karriers YL300 combine incredible strength with simple drum handling by one person.

2. It can lift, move, tilt, raise and drain your heavy 55-gallon (208 liter) standard drum or 210L plastic drums; and also the drums can be electrically rotation 180 degrees in either direction to pour up to 2000mm high.


Description:



1. Everyone knows that the safe drum handling requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. With the main feature of providing controlled dispensing of your drum,

2. With high quality hydraulic pump station and VARTA maintenance-free battery;

3. Max Load capacity 300kg;

4. Can realize electric lift and electric rotation;

5. Provide controlled dispensing of your drum;

6. Suitable for handling your 55-gallon steel drum & 210L plastic drum;

7. The solid steel construction provides stability during transit.

8. Lift, move, rotate and drain your heavy drums at up to 2090mm pouring height;

9. Parallel legs provide a compact footprint;

10. Two rigid and two swivel casters with floor lock screws;

11. All steel construction;

12. Frame is powder coated yellow;


Technical Data:





Model

YING-LIFT Electric Drum

Dumpers YL300

Load capacity

kg

300

Wheel size

mm

Ø150*50 (Front)    /  Ø100*50 (Rear)

Inside/Outside width of Support leg

mm

800 (inside)   /  930 (outside)

Turning radius

mm

1750

Pump station power

Kw/h

0.8

Battery

Ah/V

100Ah/12V

Lifting height

mm

2000 (upright drum) / 2090(horizontal drum)

Lifting speed

mm/s

120

Acceptable drum size

mm

Ф570-600

Overall size

mm

1560*1040*1470

Net weight

kg

220









Applications:



YING-LIFT Semi-electric Drum Karrier YL300 is what you need to dump 300kg plastic, steel and fiber drums up to 2090mm. The unit has a solid steel chute, two rigid and two swivel casters with floor lock screws. With the main function of controlling pouring your drums, it is widely used to help you to Lift, move, stack, tilt & drain your 55-gallon steel drum & 210L plastic drums.


Competitive Advantage:



1. Ergonomic drum handling equipment to reduce risks of injury or property damage;

2. All steel construction;

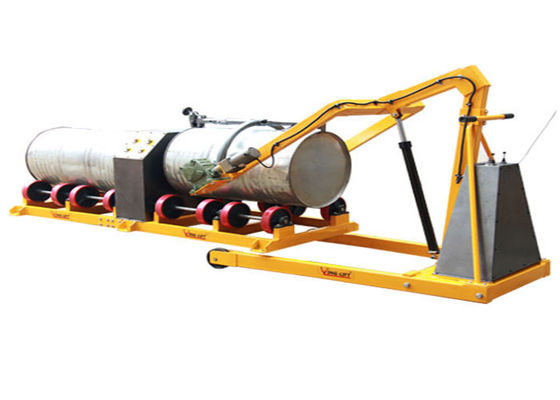

3. A custom hydraulic drum dumper can be made for your requirements, such as special lift height, extended reach, off-size containers, special straddle width, etc;

3. Best quality control systems;

4. Two rigid and two swivel casters with floor lock screws;

5. Competitive Pricing & Best Service to provide you a Professional Solution for Material handling;

6. The Specialist in Drum Handling Equipment;

7. Massive stock for fast delivery;

8. Parallel legs provide a compact footprint;





 Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers 0Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers 1Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers 2Semi - Electric Drum Transport Equipment With Hydraulic Pump Station , Drum Movers 3
