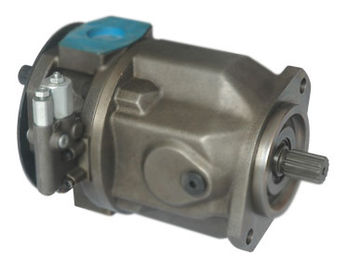

Hydraulic Axial Piston Pump

Hydraulic Axial Piston Pump
Hydraulic Axial Piston Pump

বড় ইমেজ :  Hydraulic Axial Piston Pump

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Hengyuan Hydraulic
সাক্ষ্যদান: ISO9000
Model Number: A10VSO18/28/45/71/100/140
প্রদান:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
বিস্তারিত পণ্যের বর্ণনা
লক্ষণীয় করা:

high pressure piston pump

,

electric hydraulic pump

Hydraulic Axial Piston Pump
Quick details
Clockwise Rotation High Pressure Axial Piston Pump
 displacement 100cc/140cc
Pressure and Flow control
SAE 2 hole UNC inch thread
Thru-drive Rear Cover
for Hydraulic system. Ship Hydraulic system
Specifications:

Specifications:







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)


in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)


in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60



Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump


Applications:
Hydraulic system. Ship Hydraulic system.

Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
