18cc Displacement Axial Piston Variable Hydraulic Pump , Thru-drive Rear Cover

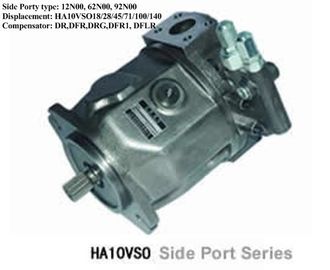

বড় ইমেজ : 18cc Displacement Axial Piston Variable Hydraulic Pump , Thru-drive Rear Cover

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Hengyuan Hydraulic
সাক্ষ্যদান:	ISO9001
Model Number:	A10VSO18/28/45/71/100/140

প্রদান:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

লক্ষণীয় করা:

axial hydraulic pump

variable displacement hydraulic pump

18cc Displacement Axial Piston Variable Hydraulic Pump , Thru-drive Rear Cover
Quick details
18cc Displacement Variable Hydraulic Pump
Pressure and Flow control
Clockwise Rotation
Splined shaft
Low noise, Small Volume

Specifications:

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
Applications:
Hydraulic system. Ship Hydraulic system.

Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
