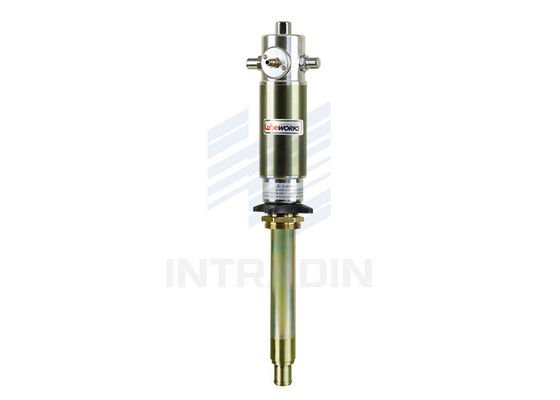

5 / 1 Differential Air Motor 13 - 16 Gallon Pneumatic Oil Pump Double Action

বড় ইমেজ : 5 / 1 Differential Air Motor 13 - 16 Gallon Pneumatic Oil Pump Double Action

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Lubeworks
Model Number:	1701051

প্রদান:

Minimum Order Quantity:	50pcs
মূল্য:	negotiation
Packaging Details:	1 piece in carton and pallet
Delivery Time:	40 working days after received your payment
Payment Terms:	T/T or L/C at sight
Supply Ability:	4,000pcs per month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Product Name:	Oil pump	Drum Application:	50-60L / 13-16gallon
Pressure Ratio:	5:1	Oil Application:	Motor oil; synthetic oil; hydrauic oil; gear oil
Oil Type:	SAE 240	Max. Fluid Pressure:	40bar / 580psi
লক্ষণীয় করা:	air driven oil pump , air operated oil pump

5:1 Differential Air Motor 50 Liter Pneumatic Oil Pump for Double Action

5:1 Air operated oil transfer pump

Specifications:

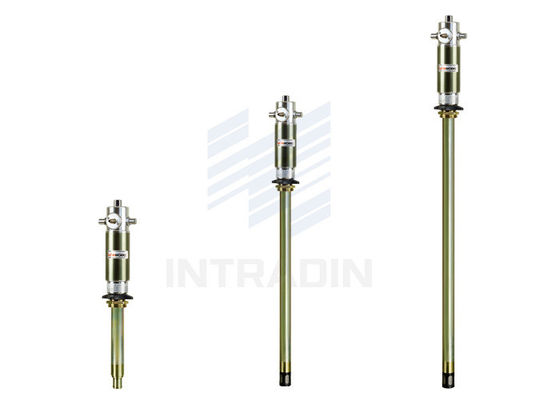

Item No.	1701051	1701052	1701053
Drum application	Wall mounted	50-60L / 13-16gallon	180-220L / 48-58gallon
Pressure ratio	5:1	5:1	5:1
Air inlet pressure	5-8bar / 70-115psi	5-8bar / 70-115psi	5-8bar / 70-115psi
Max. fluid pressure	40bar / 580psi	40bar / 580psi	40bar / 580psi
Air motor effective diameter	63mm / 2.49"	63mm / 2.49"	63mm / 2.49"
Air consumption (min)	@ 8bar 125L	@ 8bar 125L	@ 8bar 125L
Air consumption (min)	@ 115psi 4.5CFM	@ 115psi 4.5CFM	@ 115psi 4.5CFM
Max.free flow rate (min)	14L / 3.7gpm	14L / 3.7gpm	14L / 3.7gpm
Suction tube diameter	42mm / 1.65"	42mm / 1.65"	42mm / 1.65"
Suction tube length	270mm / 10.6"	730mm / 28.7"	940mm / 37"
Air inlet connection	1/4" quick plug	1/4" quick plug	1/4" quick plug
Air inlet connection	1/4" NPT Female	1/4" NPT Female	1/4" NPT Female
Oil outlet connection	1/2" M	1/2" M	1/2" M
Weight	5kgs / 11lbs	5.5kgs / 12lbs	6kgs / 13lbs
Package size	13x13x62cm	13x13x108cm	13x13x128cm

Description:

• Air operated for integration into dispensing system
• Smart design with fewer parts for less pump wear & tear
• Differential air motor ensures smooth pumping
• Typical fluids handled include motor oil, synthetic oil,
hydraulic oil, gear oil and automatic transmission fluid
• Double action
• Suitable for use of oil to SAE240
• Supplied with adjustable 2'' bung adapter
