Automatic Hydraulic Gear Grinding Machine For Motor And Reducer , Five Axis Four Linkage

Automatic Hydraulic Gear Grinding Machine  For Motor And Reducer , Five Axis Four Linkage

Quick Detail:

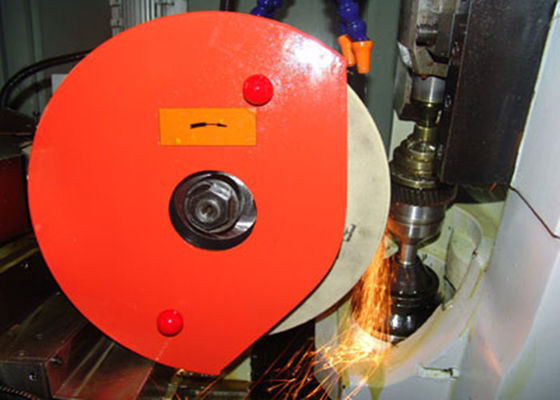

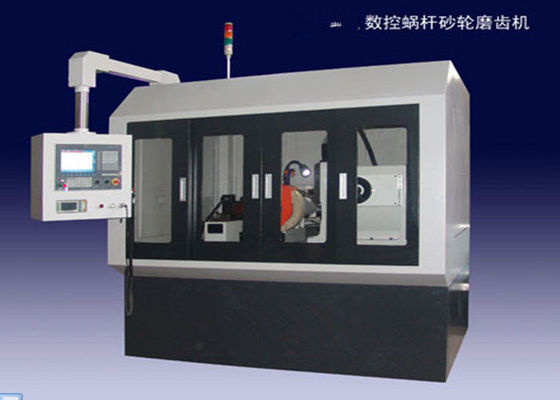

Mainly used for high precision machining of maximum diameter of 250mm, maximum modulus 5mm straight, cylindrical helical gear grinding machine YK7225A.

Particularly suitable for motor and reducer, reducer, engineering machinery, construction machinery, precision equipment, instruments and all kinds of precision gear pump products of high precision spur gears, helical gears in batch and mass production.

The machine adopts worm wheel and gear (workpiece) continuous generating grinding principle with electronic gear box (EGB) function, so that the machine has high efficiency and precision. The machine has automatic grinding, grinding wheel modification and automatic trimming function.

Description:

1.   This machine is equipped with Li Shile (REXROTH), numerical control systems and the digital servo system, the realization of the five axis four linkage.. The workpiece radial motion (X axis), the tangential motion (Y axis), the axial movement (Z axis), the grinding wheel spindle rotation (B axis), the workpiece spindle rotation (C axis).

2.   The machine tool spindle, the spindle is driven by a dedicated servo motor, controlled by a servo system synchronous tracking, stepless speed regulation according to processing requirements.

3.   This machine has the tooth profile modification function, also can according to user requirements, the allocation of special diamond roller on the workpiece profile modification.

4.   The machine has teeth on both sides of grinding allowance automatic distribution function

5.   Automatic balance device of the machine tool selection of grinding wheel on line.

6.   This machine has the automatic wheel dressing and compensation function.

7．This machine is easy to operate, machine processing program with fixed, operators only need to input the parameters and the cutting feed rate can achieve automatic grinding.

8.   The NC system, main electrical, hydraulic components, bearings, ball screw, linear guide, sealing parts are imported or domestic high-quality brand-name products, so as to ensure the reliability of the machine tool.

9.   Electrical control cabinet of the machine configuration independent, and configuration of the air conditioning.

10. This machine tool hydraulic, configuration independent cooling system.

11. This machine configuring security, closed type protective cover, and the configuration of the oil mist processor.
