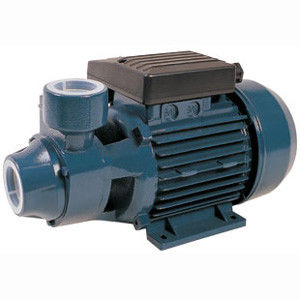

380V Peripheral Electric Water Pumps / Domestic Water Booster Pump

বড় ইমেজ : 380V Peripheral Electric Water Pumps / Domestic Water Booster Pump

পণ্যের বিবরণ:

Place of Origin:	Ningbo, China
পরিচিতিমুলক নাম:	JINTAI PUMP
সাক্ষ্যদান:	CE
Model Number:	QB

প্রদান:

Minimum Order Quantity:	1 set
Packaging Details:	WOODEN CASE
Delivery Time:	15DAYS FOR BULK ORDER, 3 DAYS FOR SAMPLE
Payment Terms:	100% T/T
Supply Ability:	5000PCS PER WEEK

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

লক্ষণীয় করা:

Stainless Steel Centrifugal Pump

High Pressure Centrifugal Pump

380V Peripheral Electric Water Pumps / Domestic Water Booster Pump

Quick Detail:

Brand Name: JINTAI water pumps
Theory: Electric booster pump
Input Voltage (V): 220V,380V 50Hz
Input Power: 370w
Pressure: High Pressure
Origin of water pumps: made in China

Description:

The QB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge,

suitable for pumping clean water and chemically non-aggressive liquid. They have relatively simple

construction and are very economical, reliable and safe.
Pumps should be installed in a covered area, protected against the weather.

Operating Limitation

Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar

Construction Features

Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45#steel /stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon

Applications:

household and domestic applications

water supply from wells and pools, pressure boosting, garden sprinkling, washing booths

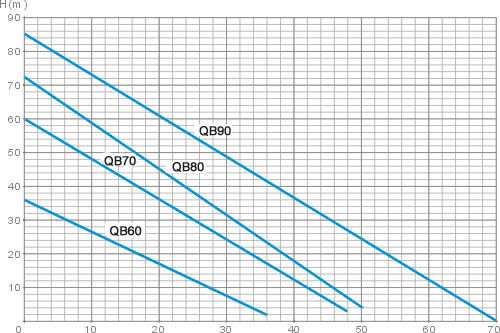

Specifications :

MODEL	INPUT POWER	VOLTAGE	MAX.FLOW	MAX.HEAD	INLET/ OUTLET	GW	PACKING DIMENSION
QB60	0.37kw	220V/50Hz	36L/min	36m	1"/1"	5.5kg	280x135x175mm
QB70	0.55KW	220V/50Hz	46L/min	60m	1"/1"	9kg	320x175x200mm
QB80	0.75kw	220V/50Hz	50L/min	72m	1"/1"	10.5kg	320x175x200mm
