High Speed Rotation Axial Hydraulic Pump For Excavator 45cc Displacement

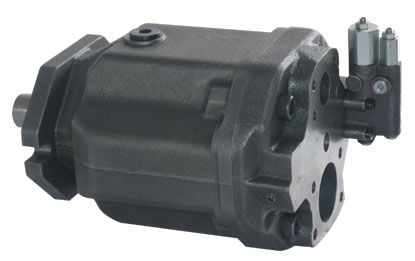

বড় ইমেজ : High Speed Rotation Axial Hydraulic Pump For Excavator 45cc Displacement

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Hengyuan Hydraulic
সাক্ষ্যদান:	ISO9000
Model Number:	A10VSO18/28/45/71/100/140

প্রদান:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

লক্ষণীয় করা:

axial piston pump

variable displacement piston pump

High Speed Rotation Axial Hydraulic Pump For Excavator 45cc Displacement

Quick details

High Pressure Tandem Variable Hydraulic Pump

Axial piston pump

displacement is 18cc/28cc/45cc

Clockwise Rotation

for excavator, machine tool

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump

Specifications:

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60
