Perbunan Seal Piston Axial Hydraulic Pump For Truck , HA10VSO DFLR Series

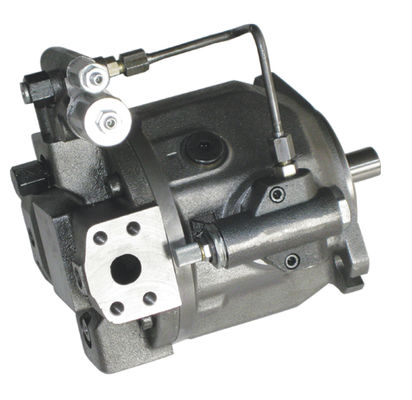

বড় ইমেজ : Perbunan Seal Piston Axial Hydraulic Pump For Truck , HA10VSO DFLR Series

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Hengyuan Hydraulic
সাক্ষ্যদান:	ISO9000
Model Number:	A10VSO45 DFLR/31R-PSC62N00

প্রদান:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

লক্ষণীয় করা:

variable piston pump

variable displacement piston pump

Perbunan Seal Piston Axial Hydraulic Pump For Truck , HA10VSO DFLR Series

Quick details

Axial piston pump

Pressure, Flow, torque control

Keyed shaft

Perbunan seal

for Concrete pump truck

Torque Control Axial Pump HA10VSO DFLR Series

Axial piston pump, displacement is 45cc.

Pressure, Flow, torque control

Clockwise Rotation

Perbunan seals

Keyed shaft

SAE 2 hole UNC metric thread

Side port type, single pump

Specifications:

Specifications				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60
